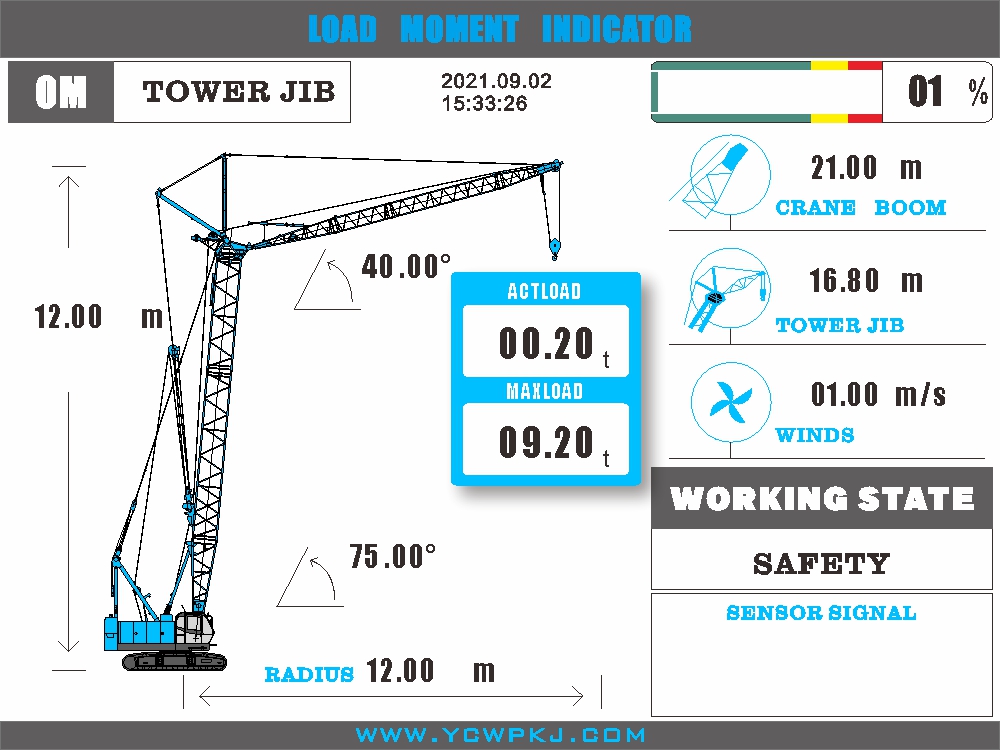

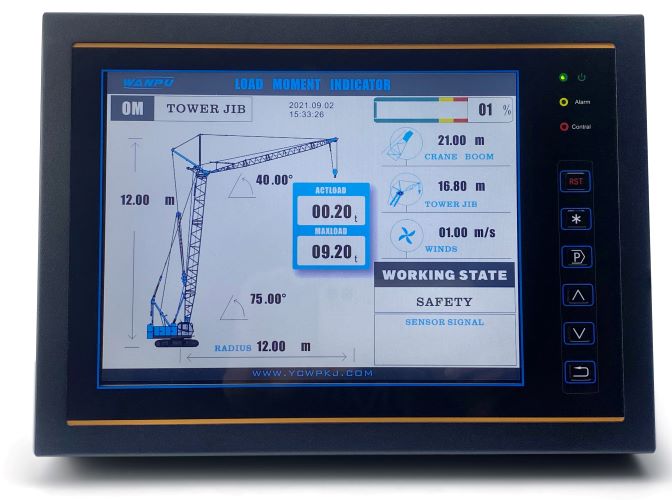

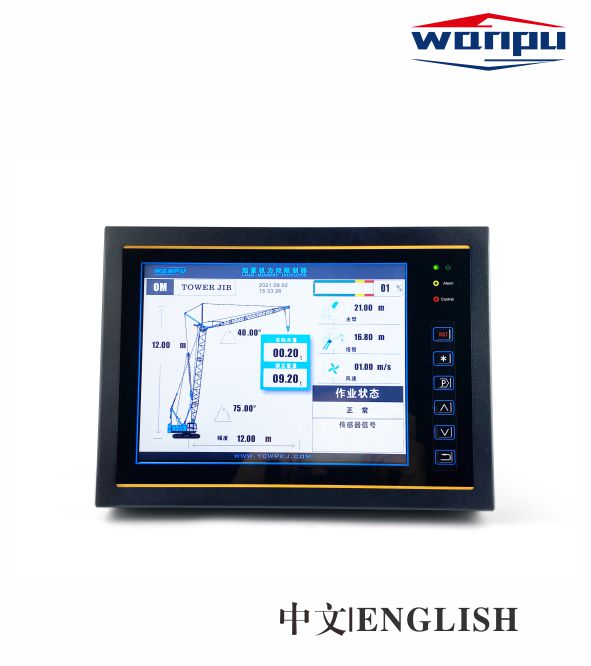

Industrial Grade 10inch lcd screens with sunlight visible function,with resolution(1024*768) and the brightness of the display can be adjusted by operator,screen visible during all-weather operation.Operation button:touch button, reliable and suitable; button logo are clear, easy to operate.
VERSATILITY AND SCALABILITY
Mobile Crane/Hydraulic Crane/Telescopic Crane/Lttice Boom Crane
CRAWLER CRANE LOAD MOMENT INDICATOR
You can contact us by email about your order details, or place order on line
INSTALLATION AND COMMISSIONING
English User Manual(include all the details of each item) will be offered for installation and trouble shooting. Also free Remote Instant Technical assistance would be offered by ourengineers. Or we can send our engineers to assist you locally.
QUALITY ASSURANCEOne year frees repair for quality-warranty.Ano-lifetime free online after service.
How to choose products
Load Moment Indicator – LMI
For hydraulic cranes, the LMI reads its load value using a pair of pressure transducers, which read the cylinder pressures of the lift cylinders
Rated Capacity Indicator – RCI
On a Rated Capacity Indicator, the load weight value is calculated by reading the strain on the wire rope. This is done by using a load pin in a sheave, a running line tensiometer (linerider) or a dead-end load cell installed at the becket end. A digital load chart is also available to show load capacity.
Load Indicator – LI
This is the simplest form of load monitoring. Here, a strain gauge device is used to read the wire rope tension producing a load value. The load sensing device can be installed in line to the crane rigging or can be placed under hook.
What is crane load?
Each crane has a load chart that, in short, specifies the crane’s capabilities — detailing its features and how its lift capacity varies when considering distance and angle. … Before a crane is rented, transported, employed or purchased, the crane chart must be consulted.
What is a load moment indicator?
Load Moment (or Rated Capacity) Indicator means a system which aids the equipment operator by sensing (directly or indirectly) the overturning moment on the equipment, i.e., load multiplied by radius.
How does a load moment indicator work?
Using different sensing devices, the Load Moment Indicator monitors various crane functions and provides the operator with a continuous reading of the crane’s capacity. The readings continuously change as the crane moves through the motions needed to make the lift.
